Doosan’s range of High-Speed Horizontal machines provide manufacturers with high productivity, precision and optimised removal rates. Our HP 5100, with its automatic pallet changer (500mm x 500mm table x 2), has a 14,000rpm spindle (40 taper) and a 60+ tool magazine.

Machine Specifications

• X axis mm 850
• Y axis mm 700
• Z axis mm 750
• Table size mm 500 x 500
• Spindle rpm 14,000
• Spindle kW 22
• 60 Tool changer
• Tooling BT40 BIG Plus type
• Index Table 1 deg/B axis
• Control F32i

Machine specifications

• CNC vertical machining centre
• X Axis 520 mm
• Y Axis 400 mm
• Z Axis 480 mm
• Power: 18 kw
• 20 tool station
• Fanuc Control

Machine specifications

• CNC Vertical machining centre
• X Axis 580mm
• Y Axis 420mm
• Z Axis 510mm
• 24 tool station
• Fanuc Oi-MD control

Machine specifications

• Turret Milling Machine with digital readout
• Power down feed to the quill in 3 steps: 0.04, 0.08 & 0.15 mm/Rev
• Variable speeds 60 – 4200 RPM
• Powerful 3 HP Motor
• R8 spindle
• Conveniently located controls for easy operator use
• Turcite Slides
• Automatic Lubrication
• Interlocked Spindle Guard

This version of the IS400 is specifically designed to meet the rigorous requirements of industrial marking. Its base allows engraving heavy items of all kinds of shapes (cubic, cylindrical, conical) and switching from engraving on flat materials straight to cylinder objects in less than 30 seconds.

Machine Specifications

• 305 x 210 mm engraving area

The Dugard 1000Y Plus is a precision built rugged machine that meets industrial requirements for high speed machining and precision mould machining. The Dugard 1000Y Plus features outstanding rigidity, stability and accuracy which gives us the ability to remain competitive year after year.

Machine specifications

• X axis 1020mm
• Y axis 610mm
• Z axis 510mm
• Table size 1200 x 600mm
• Maximum table load 600kg
• Bi-directional twin arm type auto tool changer 24 station
• Tool change time tool to tool 1.5 seconds

Maximum efficiency combined with a installation area: The C 12 is the most compact Hermle machining centre in the High-Performance-Line. Designed for machining cubic parts up to 100 kg in weight, the C 12 works in the most diverse applications compactly, precisely and dynamically.

Combined with RS05-02 Robot this machine represents best in class efficiency for maximum productivity.

• 350 x 440 x 330 mm
• 18000 RPM
• Table Loading100kg

Machine Specifications

• Multi Axis turning centre combining two spindles and one turret with a bar feed capacity of up to 76mm
• Y-axis + Sub spindle & Driven tools
• Max Swing 780
• Max turn Ø 376
• Max turn length 760
• Chuck Size 10 “
• Control Doosan Fanuc
• Spindle rpm 4,000
• Turret 12 (24 index)

Machine Specifications

• 65mm Ø CNC Lathe
• Maximum turning diameter: 300mm
• Maximum turning length: 510mm
• Main Spindle (power and speed): 15kW/4500rpm – 15kW/6000rpm
• Driven Tooling

1.25 metre Gap Bed Lathe with 80mm bore and a solid one piece bed and base.

Machine Specifications

• Swing over bed 480mm
• Spindle bore 80mm
• Distance between centres
• 1250 & 2000mm
• Max 2500 RPM
• Max 4000 RPM

The SR-10J offers efficient, accurate high speed small diameter machining within a compact footprint. Equipped with Fanuc’s powerful 32i-B CNC control and a 10.4” colour screen this model is the ideal replacement for cam-controlled lathes.

Machine Specifications:

• High speed processing with 35m/min rapid rates
• Main spindle speed 15,000 rpm, sub-spindle speed 10,000 rpm
• Z1 Stroke of 105mm
• Parts up to 70mm can be front ejected
• 4 Station sub-spindle platen for maximum overlapping
• Compact footprint & ergonomic design

The SR 20 R IV Sliding Head Lathe is Star’s latest addition to the sliding head range. The SR 20R IV can accommodate up to 41 tools to yield a variety of tooling options. The SR 20 R IV sliding head machine also has B axis controlled power driven tools for varied machining operations.

Machine Specifications

• Max Machining Diameter 20mm
• Max Headstock Stroke 205mm
• Max Spindle Speed 10,000 rpm
• C-axis Control
• B-axis power driven tools
• 3 metre bar feed

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

• Machine Specifications
• Up to 20mm Ø capacity
• 3 metre bar feed

Highly efficient and versatile sliding & fixed head lathe able to produce precise and complex parts from bar material.

• Machine Specifications
• Up to 42mm Ø capacity
• 3 metre bar feed

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

Machine Specifications

• Up to 13mm Ø capacity
• 3 metre bar feed

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

Machine Specifications

• Up to 22mm Ø capacity
• 3 metre bar feed
• Guide bush & Non Guide Bush Mode
• High Frequency Turning
• High Pressure Coolant

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

Machine Specifications

• Up to 22mm Ø capacity
• 3 metre bar feed
• Guide bush & Non Guide Bush Mode
• High Frequency Turning
• High Pressure Coolant

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

Machine Specifications

• Up to 22mm Ø capacity
• 3 metre bar feed

High speed, compact multi tasking twin spindle/turret CNC machining centre.

Machine Specifications

• Up to 51mm Ø capacity bar fed
• Up to 190mm chucking
• 400mm between centres
• Driven tooling
• 3 metre bar feed
• Swarf conveyor

Highly efficient and versatile sliding head lathe able to produce precise and complex parts from bar material.

Machine Specifications

• Up to 22mm Ø capacity
• 3 metre bar feed

Featuring 2 spindles and 2 turrets, the main turret with Y axis function the BNJ-51SY3 allows simultaneous and complex machining in 1 hit.

Machine Specifications

• Up to 51mm Ø capacity
• Standard turning length 100mm
• Driven tooling
• 3 metre bar feed
• Swarf management
• Parts conveyor

Featuring 2 spindles and 2 turrets, the main turret with Y axis function the BNJ-51SY3 allows simultaneous and complex machining in 1 hit.

Machine Specifications

• Up to 51mm Ø capacity
• Standard turning length 100mm
• Driven tooling
• 3 metre bar feed
• Swarf management
• Parts conveyor

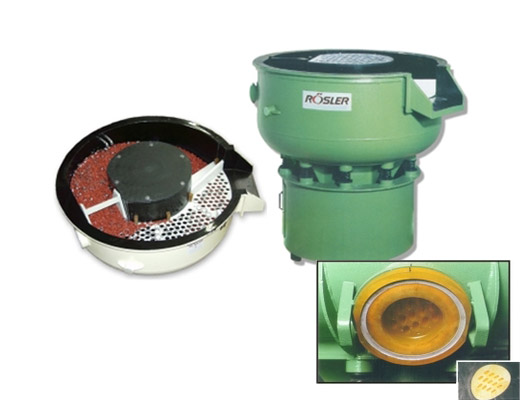

Flat bottom rotary vibrators are perfect for treating large and bulky as well as delicate parts. The flat bottom ensures a perfect immersion of the parts into the media mass. For parts that need to be processed individually without touching each other, so-called “paddle wheels” with dividers are available which create separate processing chambers in the work bowl. Bottom unload gates allow complete evacuation of the work bowl and external separation of media from parts.

Offering ultra short cycle times, high throughput and the highest standards in surface cleaning, our PERO’s R1 sets the benchmark in component cleaning performance.

Compact vertical lifts can completely transform your stock handling. You can achieve faster and easier handling of more items in a considerably smaller floor space. At the same time your staff will benefit from dramatically improved working conditions. DKW stock all raw material, finished stock and consumables in our vertical storage system.

The Crysta-Apex V is the next generation of Mitutoyo’s industry standard, compact, economical, high-performance CNC Co-ordinate Measuring Machine. Designed for high accuracy, the Crysta-Apex V is also prepared to accommodate touch trigger, contact and non-contact scanning probe systems.

Machine Specifications:

• X axis 500mm
• Y axis 700mm
• Z axis 400mm

Machine Specifications:Ø52mm

• Ø52mm Non Contact laser measuring system
• Main dimensions measured without programming
• Intelligent recognition of your pieces / programs
• Full dimensional reports

The VB400 vertical bench top optical system has a 16″ screen, 200mm X-axis and 100mm Y-Axis travel with fine adjustment, zero backlash and fast traverse, 16″ x 9″ top plate, quick change bayonet fitting lenses, Q-axis digital protractor with angular measurements to 1′ resolution and your choice of powerful Quadra-Chek or MetLogix software control systems.

Machine Specifications Index C200

• 65mm Ø Spindle Clearance
• 710mm Turning Length
• Triple Turret and Twin Spindles
• 3 mtr Bar Feed
